Only press the button to ask for help, and press the Familiarity Number buttons to talk to the familiarities.
SBJ elderly guarder function introduction
Product Name: GSM elderly guarder

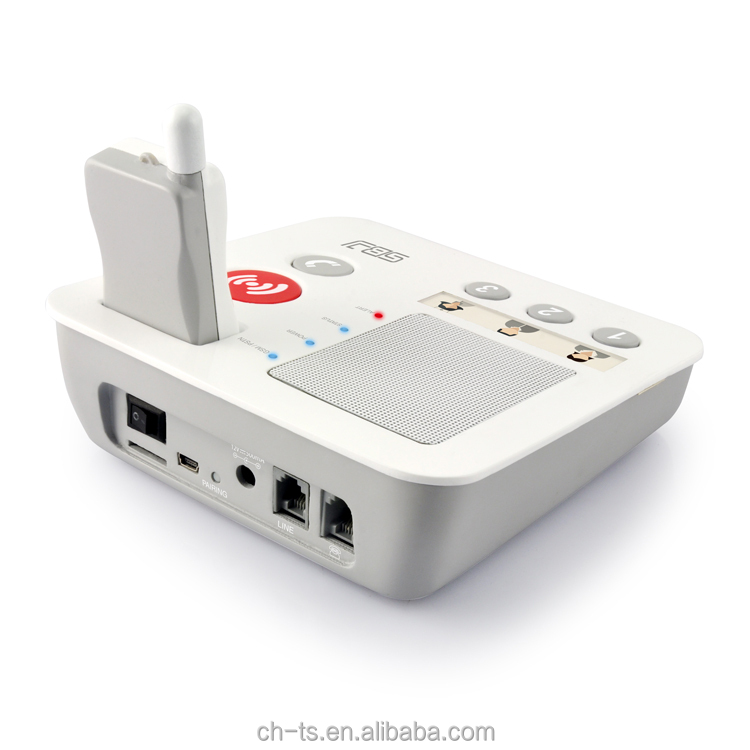

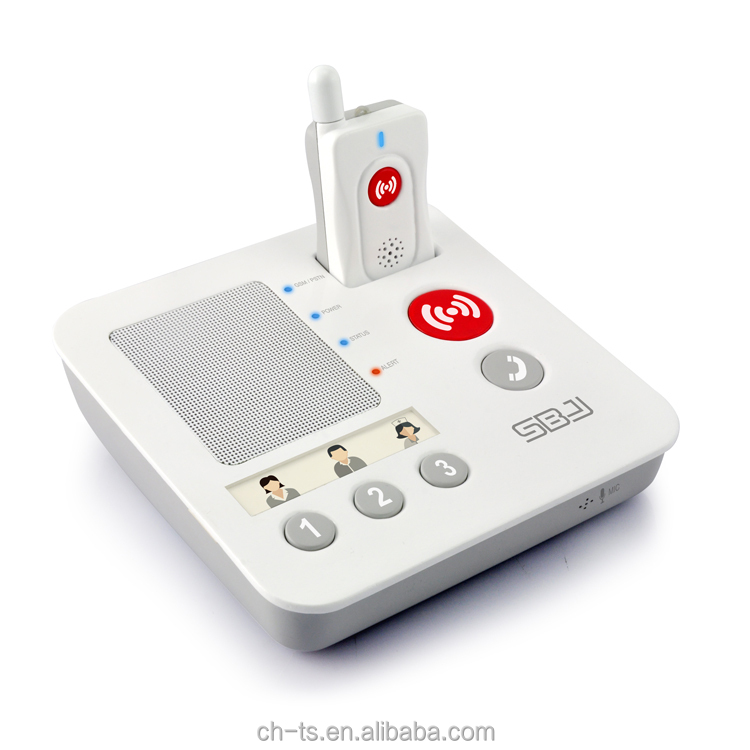

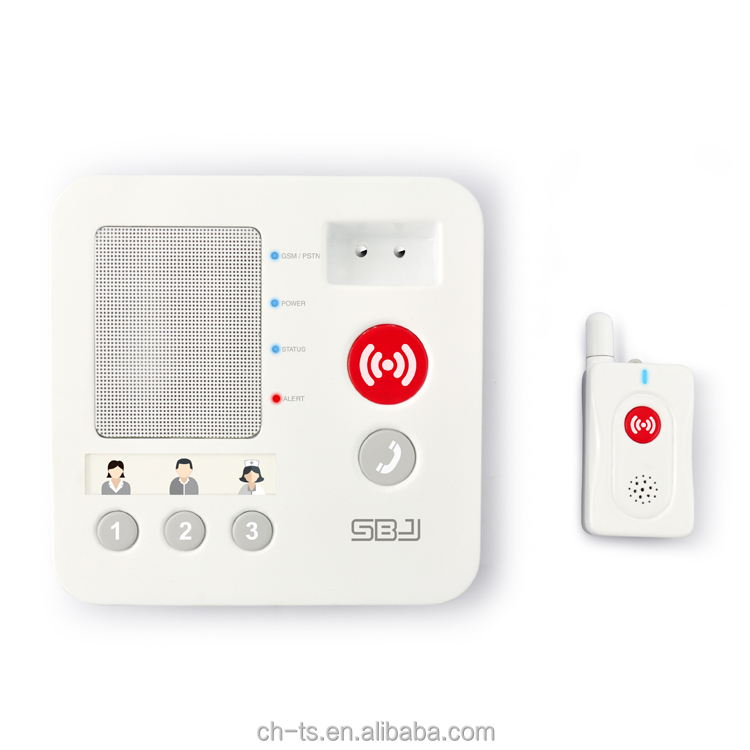

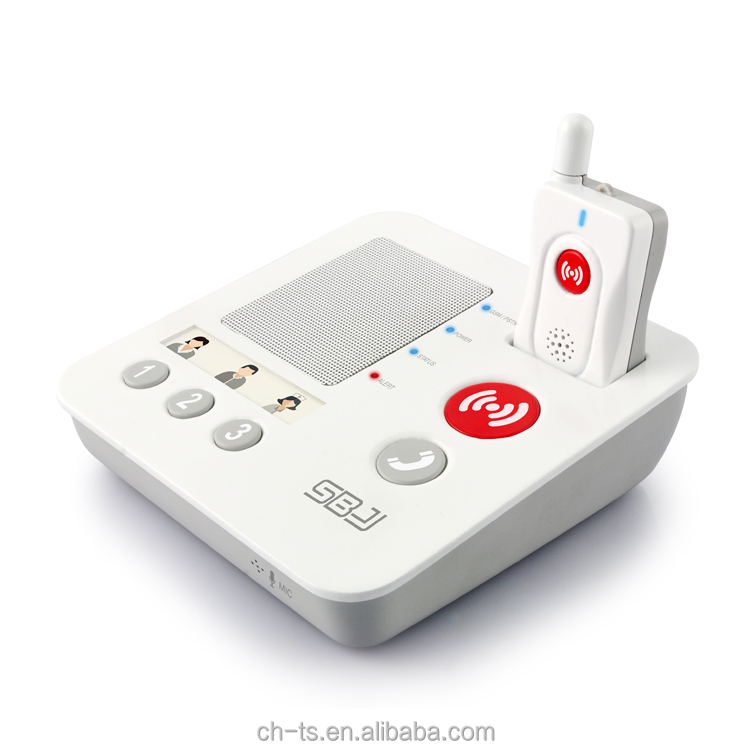

Main unit with an easy identification light button used for SOS,the main unit will automatically call 5 different phone number and send text message to 3 different phone number(phone number setted by configuratin software) after press this button,main unit can add several wireless button(pendant),usder for take along or installed in the bedroom,within about 200 meters far from main unit(in terms of clearing),can press the pendant for help when meet an emergency.when the 8 phone number calls come in to,the main unit will automatic answering when GSM in a working state,it can be two-way communication without any operation
Four monitoring protection zones(each sector need to configure a wireless detector) used to monitor bedroon,kitchen,bathroom,restaurants and other places where elderly often goes,when elderly didn’t go to these places within setting time,the main unit will make a corresponding warning tone and send text message to the user at the same time,text messages can be edited by the user.
24hour protection zones used for water leakage(need to configure the wireless water leakage detector),smoking(need to configure the wireless smoke detector),gas leak(need to configure the wireless gas leak detector),carbon monoxide(need to configure the wireless carbon monoxide detector)detection. when detect the above conditions it will make a corresponding warning tone,dial 5 different phone number and send text message to 3 different phone number immediately
4 alarm clock time used for remind elderly or child should take medicine,eat,rest etc
3 dial direct number button,each button can set a number,it can be a mobile phone number can also be a fixed telephone number.After press the button it will automatic dial the setted phone number without any operation.The number can be setted as parents,children,doctors phone number.When the setted number calls come in to ,the main unit will answered automatically without any operation ,so it’s very convenient for the elderly and child to communicate with their children,parent,doctor,relatives etc.
Built-in large capacity backup batteries,main unit will send sound alarm after power off and can send text messages if haven’t recovery within half an hour.
System selfchecking function can be setted from 0 to 240 hours of inspection intervals to ensure that main unit phone card have enough balance.
It’s simple to use,can be setted by computer configurate software,also can be set through mobile phone text messages.
GSM elderly guarder technical data
full frequeny,can be used around the world
wireless detector frequency
Transmission distance of wireless emergency buttom
Transmission distance of wireless detector
Maximum number of wireless emergency button
3 (if occupy 24 hours protection zone it can receive 6)
Maximum number of wireless detector button
7 (4 monitoring zones,3 twenty-four zones,3 wireless emergency button zone also can be used for 24 hours protection zone)
